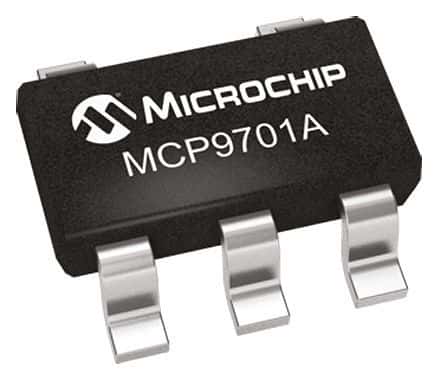

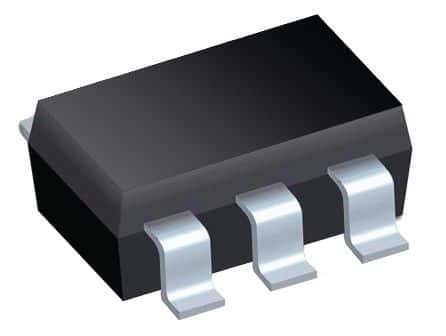

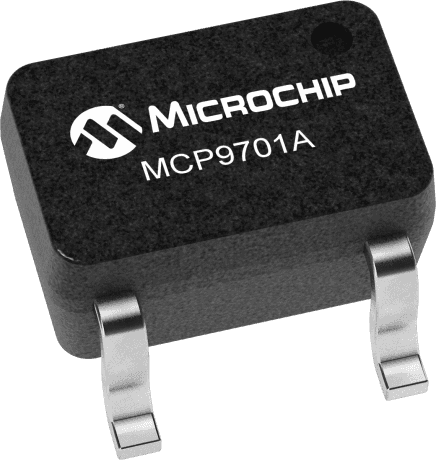

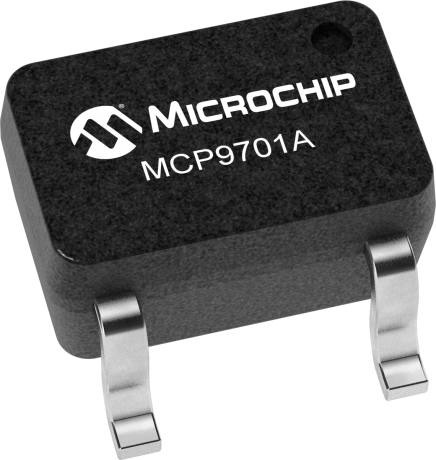

Analog temperature sensor with a 3V to 5.5V operating voltage range, featuring an analog voltage output. This surface mount component operates from -40°C to 125°C and is housed in a compact SC package. It offers a low operating supply current of 6µA and is RoHS compliant.
Sign in to ask questions about the Microchip MCP9701AT-E/LT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP9701AT-E/LT technical specifications.
| Package/Case | SC |
| Height | 0.039inch |
| Impedance | 20R |
| Lead Free | Lead Free |
| Length | 0.086inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 30mA |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Operating Supply Current | 12uA |
| Output | ANALOG |
| Output Type | Analog, Analog Voltage, Digital |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Supply Current | 6uA |
| Termination | SMD/SMT |
| Width | 0.053inch |
| RoHS | Compliant |
