Digital temperature sensor with 12-bit resolution, offering 3% accuracy across a -55°C to 125°C operating range. Features I2C, SMBus, and 2-wire serial interfaces for versatile integration. Operates from a 2.7V to 5.5V supply voltage with a typical current consumption of 200µA. Packaged in an 8-pin MSOP for surface mount applications.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP9801-M/MS technical specifications.
General
Accuracy
3%
Package/Case
MSOP
Height
0.85mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
12
Operating Supply Current
200uA
Output Current
1uA
Output Type
Digital, I2C
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP9801-M/MS Datasheet
Download the complete datasheet for Microchip MCP9801-M/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

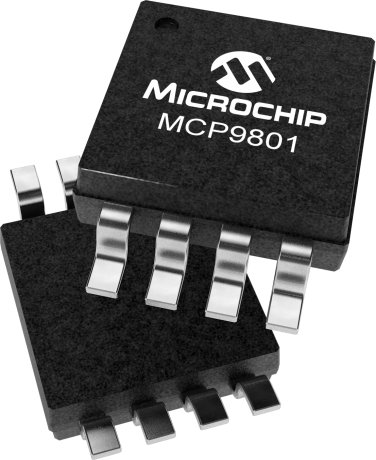

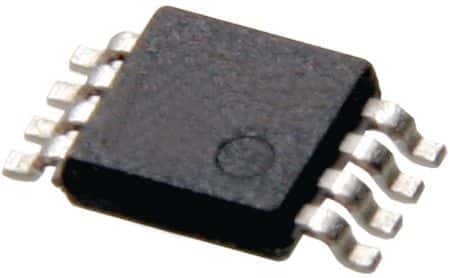

Product Images
