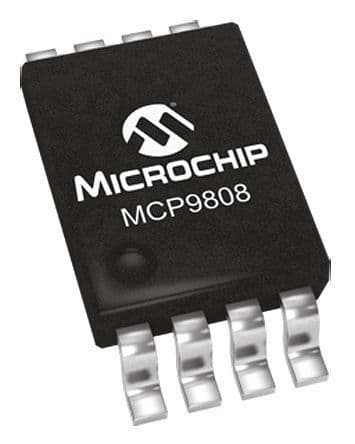

Digital temperature sensor with I2C, SMBus, and 2-Wire serial interface. Features a 16-bit resolution with 10-bit temperature output, operating from a 2.7V to 5.5V supply. This component offers a wide operating temperature range of -40°C to 125°C and is housed in a compact 8-pin MSOP package. It is RoHS compliant and designed for efficient operation with a typical supply current of 200uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP9808-E/MS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP9808-E/MS technical specifications.
| Package/Case | MSOP |
| Height | 0.95mm |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 16 |
| Output Current | 200uA |
| Output Type | Digital, I2C |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Width | 3mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MCP9808-E/MS to view detailed technical specifications.
