Digital temperature sensor with 8-bit resolution, offering 2°C accuracy across a -40°C to 125°C operating range. Features an I2C, SMBus, and 2-wire serial interface, operating from a 2.7V to 5.5V supply. This surface mount component, housed in a rectangular TSSOP package, has a typical supply current of 200µA.
PackageTSSOP
Current500uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP9843-BE/ST technical specifications.
General
| Accuracy | 2% |
| Package/Case | TSSOP |
| Height | 0.041inch |
| Impedance | 1R |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Length | 0.122inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Operating Supply Current | 200uA |
| Output Current | 1uA |
| Output Type | Digital, I2C |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Supply Current | 500uA |
| Termination | SMD/SMT |
| Width | 0.177inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP9843-BE/ST Datasheet
Download the complete datasheet for Microchip MCP9843-BE/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

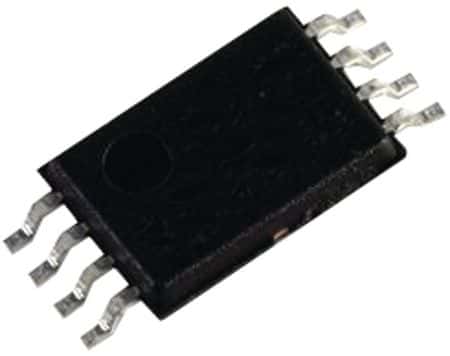

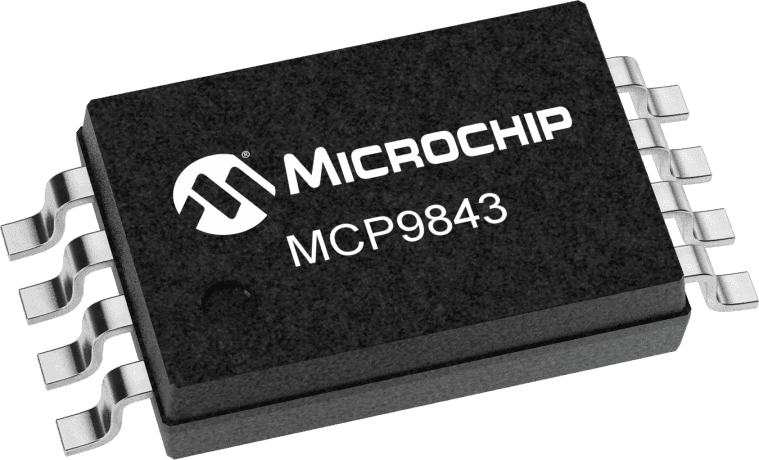

Product Images
