Single timer IC, operating at 5 MHz with a 2% frequency tolerance. Features a 5-pin SOT-23 surface mount package, measuring 2.9mm length, 1.6mm width, and 1.1mm height. Supports a supply voltage range of 2.7V to 18V, with a typical operating supply current of 350µA. Offers output currents of 20mA (low level) and -20mA (high level). Operates within a temperature range of -40°C to 85°C. Packaged in tape and reel with 3000 units per reel.
Frequency5MHz
PackageSOT-23
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC1555YM5-TR technical specifications.
General
Package/Case
SOT-23
Frequency
5MHz
Frequency Tolerance
2%
Height
1.1mm
High Level Output Current
-20mA
Lead Free
Lead Free
Length
2.9mm
Low Level Output Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Timers/Counters
1
Operating Frequency
5 MHz
Operating Supply Current
350uA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
IttyBitty®
Supply Current
200uA
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC1555YM5-TR Datasheet
Download the complete datasheet for Microchip MIC1555YM5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

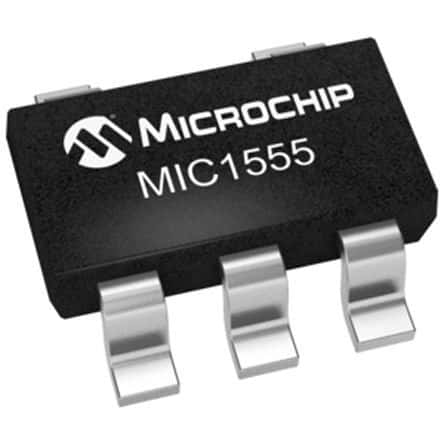

Product Images
