Single-channel timer IC operating at 5MHz with 2% frequency tolerance. Features a 5-pin SOT-23 surface mount package, supporting supply voltages from 2.7V to 18V. Delivers 20mA high-level output current and -20mA low-level output current. Offers a typical operating supply current of 350uA and a compact footprint with dimensions of 2.9mm (L) x 1.6mm (W) x 1.1mm (H). RoHS compliant and suitable for operation across a -40°C to 85°C temperature range.
Frequency5MHz
PackageSOT-23
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC1557YM5-TR technical specifications.
General
| Package/Case | SOT-23 |
| Frequency | 5MHz |
| Frequency Tolerance | 2% |
| Height | 1.1mm |
| High Level Output Current | -20mA |
| Length | 2.9mm |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Timers/Counters | 1 |
| Operating Frequency | 5 MHz |
| Operating Supply Current | 350uA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IttyBitty® |
| Supply Current | 200uA |
| Termination | SMD/SMT |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC1557YM5-TR Datasheet
Download the complete datasheet for Microchip MIC1557YM5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

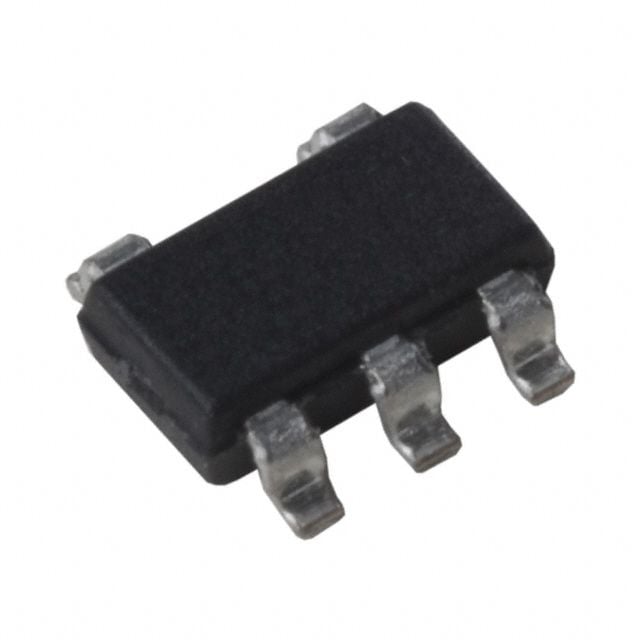

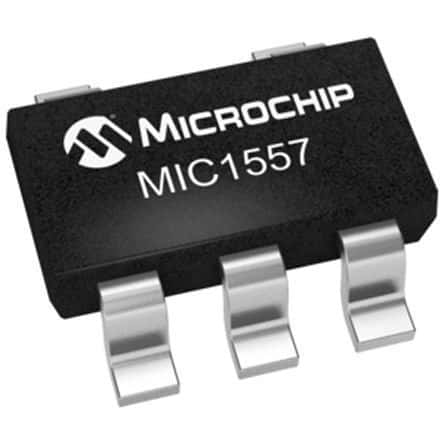

Product Images
