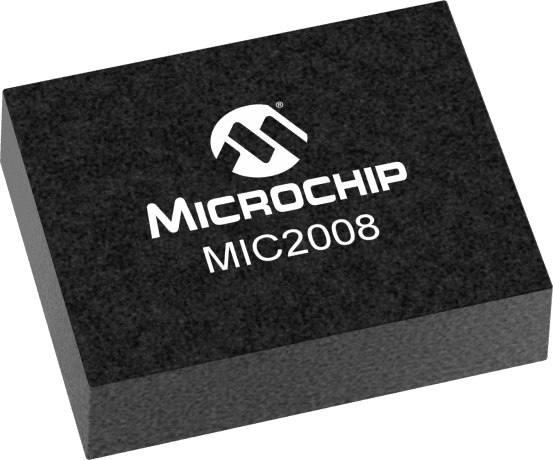

The MIC2008YML-TR is a high side switch with a maximum output current of 2A and a maximum supply voltage of 5.5V. It operates within a temperature range of -40°C to 85°C and is designed for surface mount applications. The device is lead free and RoHS compliant, making it suitable for environmentally friendly designs.
Sign in to ask questions about the Microchip MIC2008YML-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC2008YML-TR technical specifications.
| Package/Case | DFN EP |
| Fault Protection | Over Temperature |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| On-state Resistance-Max | 100MR |
| Output Configuration | High Side |
| Output Voltage | 6V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
