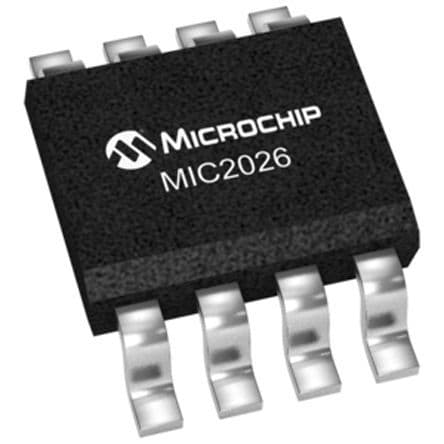

Dual USB power switch IC, surface mountable in an 8-pin SOIC package. Features over-temperature fault protection and a 2.7V to 5.5V input voltage range. Offers two high-side outputs with a maximum output current of 500mA per channel and a maximum rated current of 1.25A. On-state resistance is 90mR, with a maximum of 140mR. Operates across a temperature range of -40°C to 85°C.
Sign in to ask questions about the Microchip MIC2026-2YM-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC2026-2YM-TR technical specifications.
| Package/Case | SOIC |
| Fault Protection | Over Temperature |
| Height | 1.63mm |
| Interface | On/Off |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| On-State Resistance | 90mR |
| On-state Resistance-Max | 140MR |
| Output Configuration | High Side |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1.25A |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 20uA |
| Width | 3.99mm |
| RoHS | Compliant |
