Surface mount DC/DC controller and regulator with a maximum switching frequency of 450kHz. Features a 2.4V to 16V input voltage range and delivers up to 500mA output current. This integrated circuit supports boost, flyback, and SEPIC topologies, offering an adjustable output voltage up to 16V. Achieves 85% efficiency and operates within a -40°C to 85°C temperature range.
Frequency450kHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2145YMM technical specifications.
General
| Package/Case | MSOP |
| Efficiency | 85% |
| Frequency | 450kHz |
| Lead Free | Lead Free |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 2.5W |
| Max Output Voltage | 16V |
| Min Output Voltage | 2.4V |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 16V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 450kHz |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Topology | Boost, Flyback, SEPIC |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2145YMM Datasheet
Download the complete datasheet for Microchip MIC2145YMM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

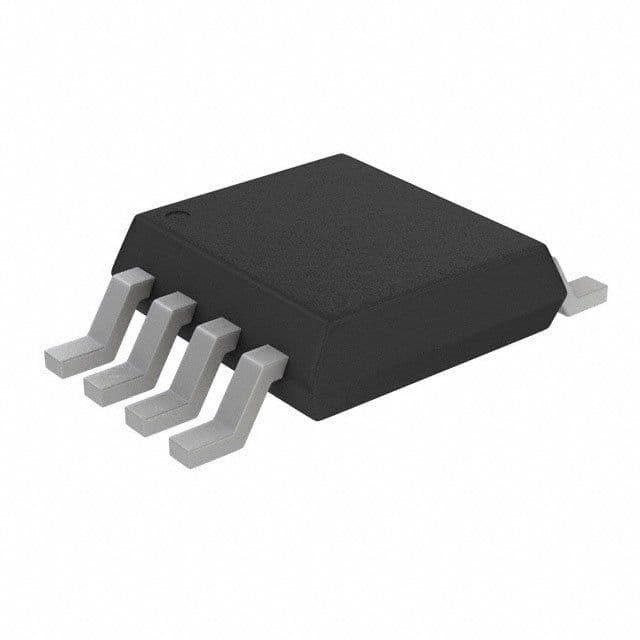

Product Images
