1.25A adjustable output DC/DC controller with a maximum input voltage of 40V and a maximum output voltage of 65V. This surface mountable integrated circuit operates with a maximum switching frequency of 100kHz and features an 89% maximum duty cycle. It supports boost, flyback, forward converter, and Cuk topologies, offering a single adjustable output. Packaged on tape and reel, this lead-free, RoHS compliant component is designed for operation between -40°C and 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2172YM-TR technical specifications.
General
| Package/Case | SOIC |
| Duty Cycle | 89% |
| Height | 1.48mm |
| Lead Free | Lead Free |
| Length | 4.93mm |
| Max Duty Cycle | 89% |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.25A |
| Max Output Voltage | 65V |
| Min Output Voltage | 1.24V |
| Max Supply Voltage | 40V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1.25A |
| Output Type | Adjustable |
| Output Voltage | 65V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 100kHz |
| Synchronous Rectifier | No |
| Topology | Boost, Flyback, Forward Converter, Cuk |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2172YM-TR Datasheet
Download the complete datasheet for Microchip MIC2172YM-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

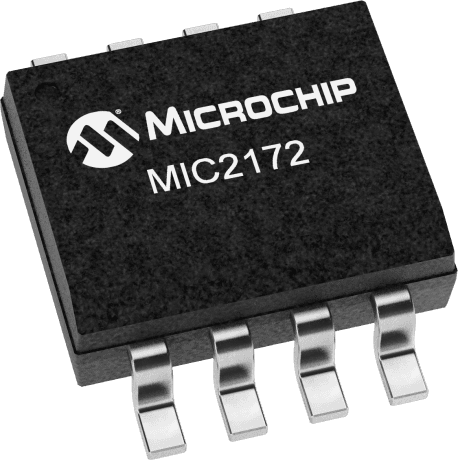

Product Images
