Single-output DC/DC step-down controller with adjustable output voltage, operating up to 330kHz. Features include a maximum supply voltage of 32V, maximum output current of 20A, and a maximum duty cycle of 86%. This non-isolated, surface-mount integrated circuit is housed in a 16-pin SOIC package, measuring 10mm in length, 3.99mm in width, and 1.64mm in height. It offers a quiescent current of 600µA and operates within a temperature range of -40°C to 85°C.
Frequency330kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2182YM technical specifications.
General
Package/Case
SOIC
Duty Cycle
86%
Fall Time
60ns
Height
1.64mm
Isolation
Non-Isolated
Lead Free
Lead Free
Length
10mm
Max Duty Cycle
86%
Max Frequency
330kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Supply Voltage
32V
Mount
Surface Mount
Number of Outputs
1
Output Current
20mA
Output Type
Adjustable
Output Voltage
6V
Package Quantity
48
Packaging
Rail/Tube
Quiescent Current
600uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
MIC2182
Switching Frequency-Max
300kHz
Width
3.99mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2182YM Datasheet
Download the complete datasheet for Microchip MIC2182YM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

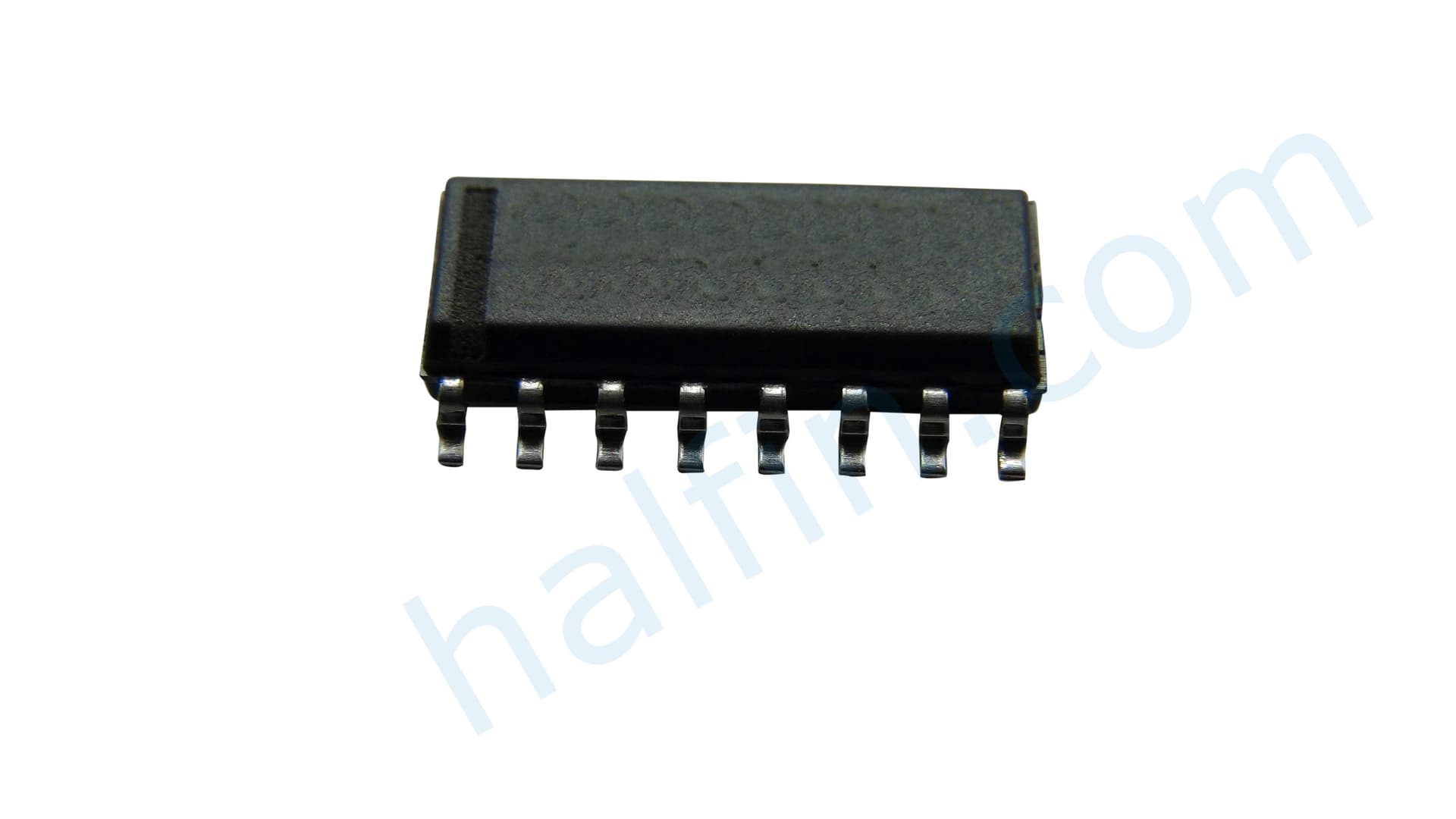

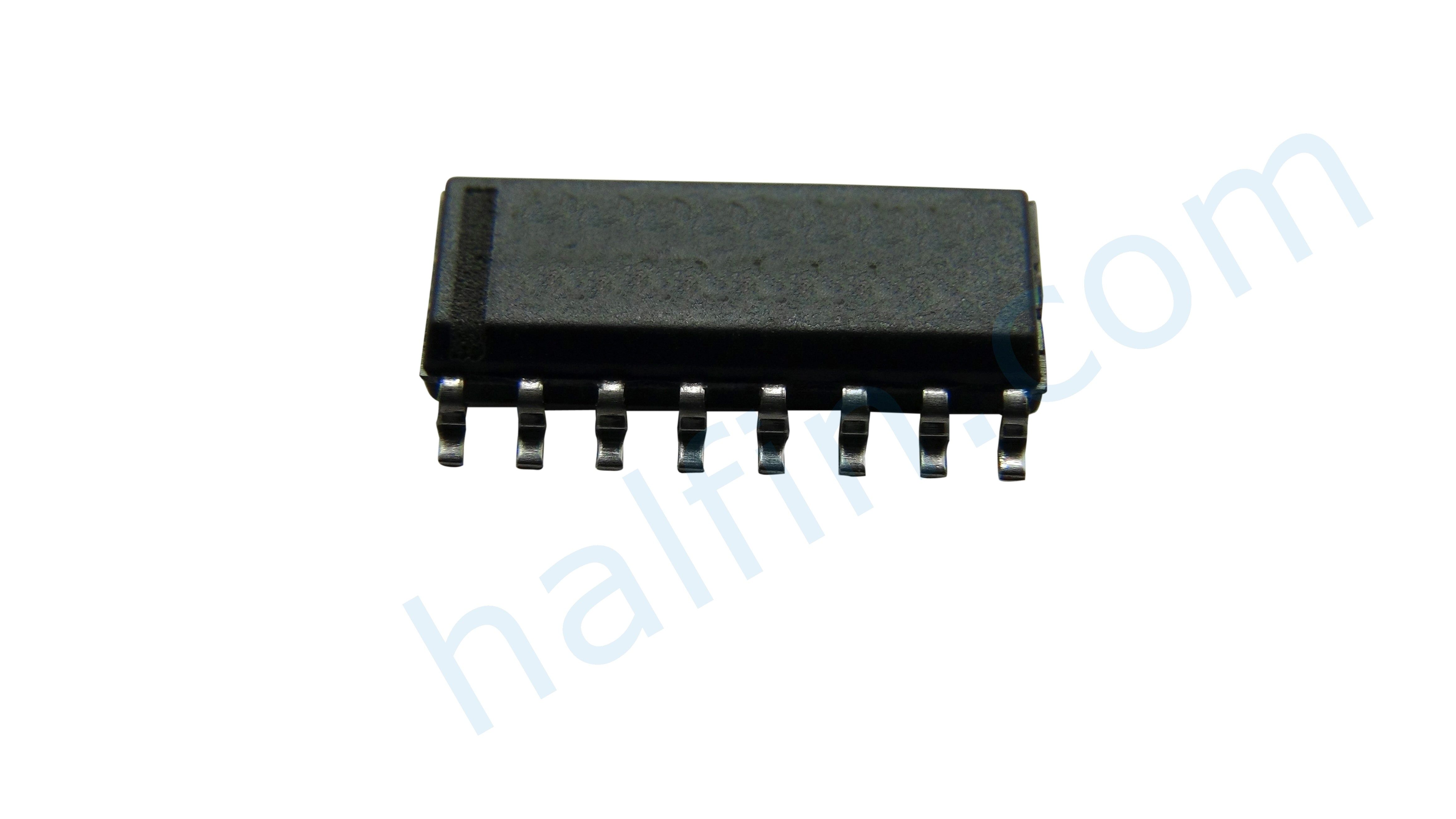

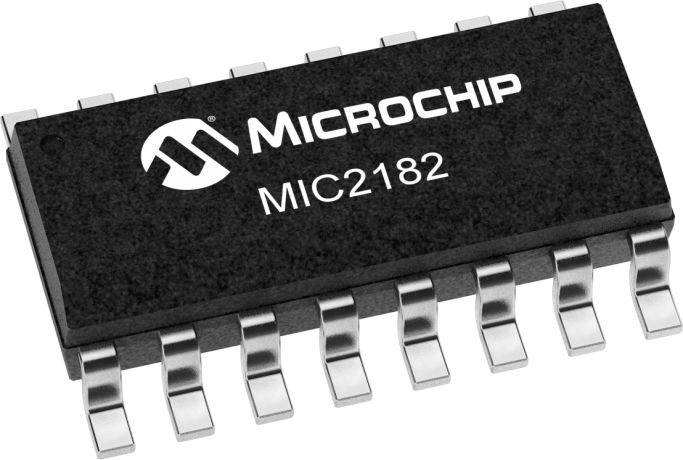

Product Images
