Triple output, adjustable positive LDO regulator featuring 1% accuracy and a maximum input voltage of 5.5V. Each of the three regulators provides 250mA output current with a low dropout voltage of 170mV. This surface mount component is housed in a compact VQFN package, measuring 3mm x 3mm x 0.8mm, and operates within a temperature range of -40°C to 125°C. It offers a quiescent current of 1µA and is supplied on tape and reel.
PackageVQFN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC2215-AAAYML-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | VQFN |
| Current - Output 1 | 250mA |
| Current - Output 2 | 250mA |
| Dropout Voltage | 170mV |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Min Current Limit | 350mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.25V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Number of Regulators | 3 |
| Output Current | 250mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2215-AAAYML-TR Datasheet
Download the complete datasheet for Microchip MIC2215-AAAYML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

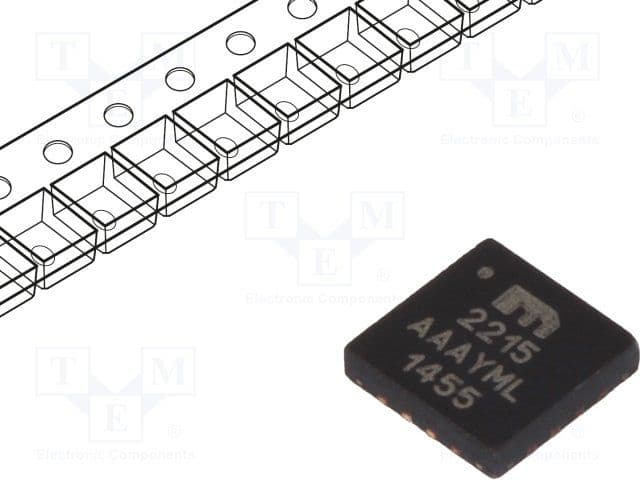

Product Images
