Technical Specifications
Microchip MIC2238-GFHYML-TR technical specifications.
General
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Min Output Voltage
1.8V
Mount
Surface Mount
Number of Outputs
2
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Package Quantity
5000
Packaging
Tape and Reel
RoHS Compliant
Yes
Switching Frequency-Max
2.875MHz
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2238-GFHYML-TR Datasheet
Download the complete datasheet for Microchip MIC2238-GFHYML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

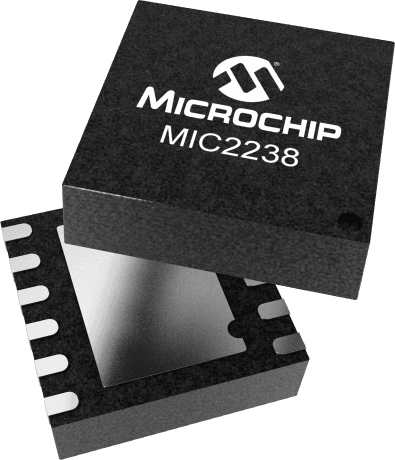

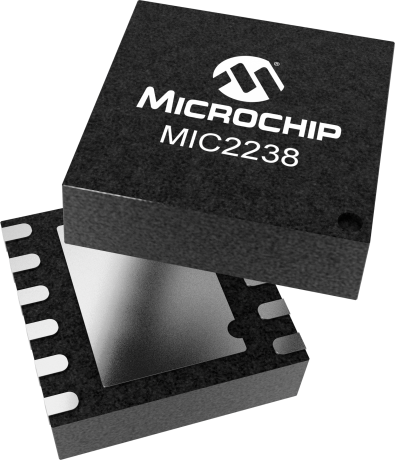

Product Images
