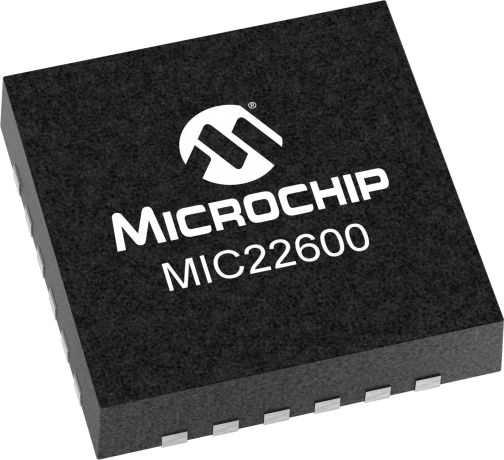

High-efficiency 6A, 1MHz switching regulator with adjustable output voltage from 700mV to 5.5V. Features a maximum input voltage of 5.5V and a synchronous rectifier for enhanced performance. This surface-mount DC/DC controller is housed in a compact 4mm x 4mm x 0.8mm QFN package, operating across a -40°C to 125°C temperature range. Delivered on tape and reel, this RoHS-compliant component offers up to 90% efficiency.
Sign in to ask questions about the Microchip MIC22600YML-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC22600YML-TR technical specifications.
| Package/Case | QFN |
| Efficiency | 90% |
| Height | 0.8mm |
| Length | 4mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 700mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 6A |
| Output Type | Adjustable |
| Output Voltage | 700mV |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1MHz |
| Synchronous Rectifier | Yes |
| Width | 4mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip MIC22600YML-TR to view detailed technical specifications.
