Technical Specifications
Microchip MIC2287-34YML-TR technical specifications.
General
Package/Case
DFN
Dimming
Analog, PWM
Frequency
1.2MHz
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
10V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Segments
8
Operating Frequency
1.2 MHz
Output Current per Channel
750mA
Output Voltage
34V
Package Quantity
5000
Packaging
Tape and Reel
RoHS Compliant
Yes
Switching Frequency-Max
1.2MHz
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2287-34YML-TR Datasheet
Download the complete datasheet for Microchip MIC2287-34YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

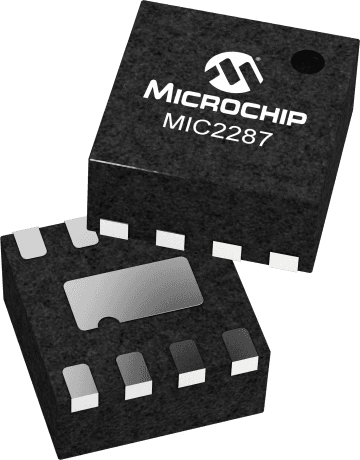

Product Images
