1A adjustable boost switching regulator with a maximum switching frequency of 1.2MHz. Features a 2.5V to 10V input voltage range and a 2.5V to 34V output voltage capability. This surface mount component is housed in a compact TSOT package (2.9mm L x 1.6mm W x 0.87mm H) and operates from -40°C to 125°C. Packaged on tape and reel for automated assembly.
PackageTSOT
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2288YD5-TR technical specifications.
General
| Package/Case | TSOT |
| Height | 0.87mm |
| Length | 2.9mm |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 34V |
| Min Output Voltage | 2.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 34V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1.2MHz |
| Synchronous Rectifier | No |
| Topology | Boost |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2288YD5-TR Datasheet
Download the complete datasheet for Microchip MIC2288YD5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

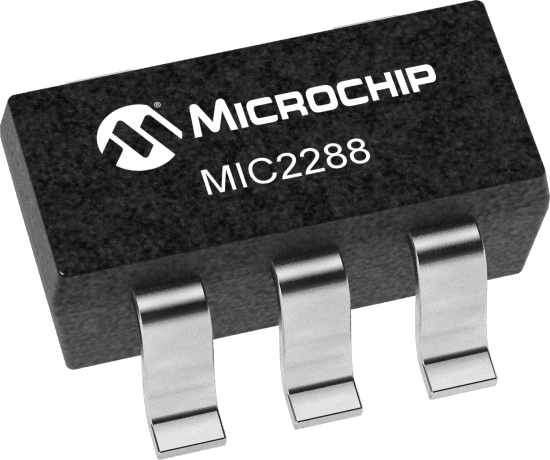

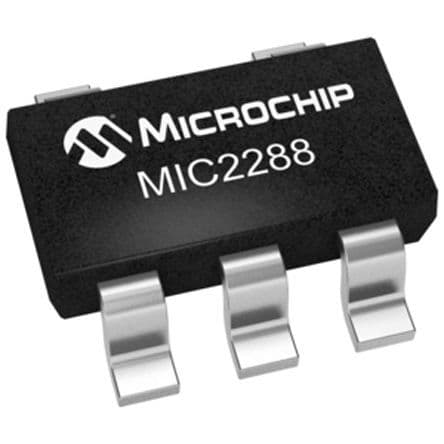

Product Images
