Technical Specifications
Microchip MIC2296YD5-TR technical specifications.
General
| Package/Case | SOT-23-5 |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Voltage | 34V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1.2A |
| Output Type | Adjustable |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 600kHz |
| Synchronous Rectifier | No |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC2296YD5-TR Datasheet
Download the complete datasheet for Microchip MIC2296YD5-TR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

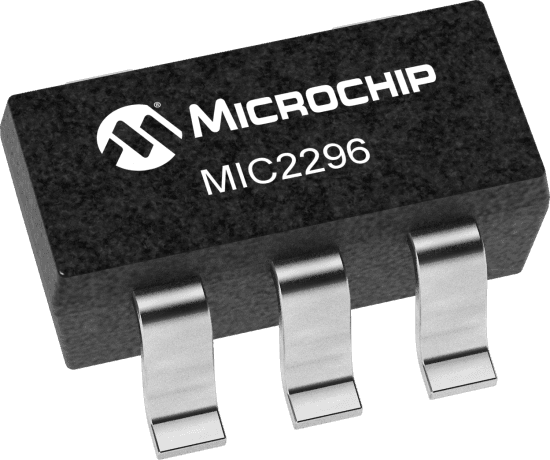

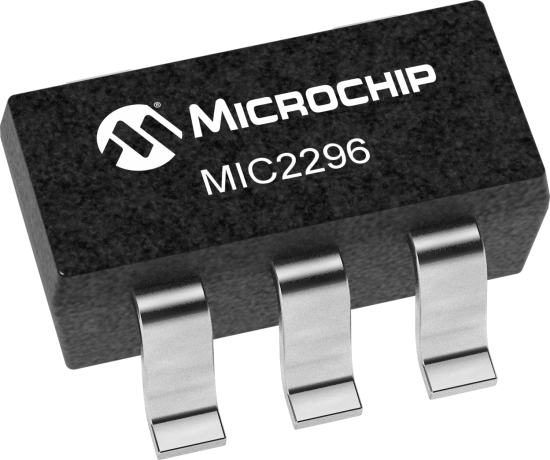

Product Images
