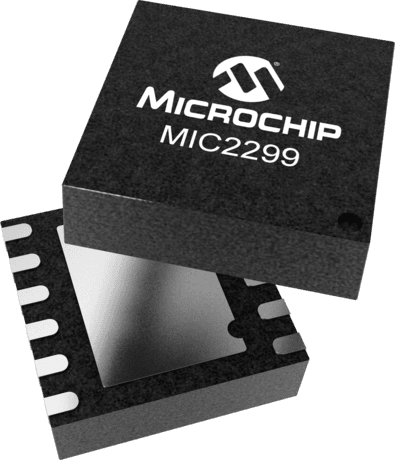

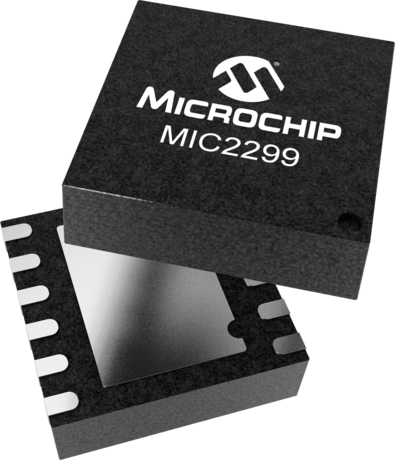

Surface mount LED display driver featuring analog dimming and a 2MHz switching frequency. This boost topology IC operates with a 2.5V to 10V input voltage range, delivering up to 30V output voltage and 1A output current. Designed for 12-lead QCC packaging, it offers a 3.5A output current per channel and operates from -40°C to 125°C. The component is RoHS compliant and supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC2299-15YML-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC2299-15YML-TR technical specifications.
| Dimming | Analog |
| Frequency | 2MHz |
| Height | 0.83mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 10V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 2 |
| Operating Supply Voltage | 9V |
| Output Current | 1A |
| Output Current per Channel | 3.5A |
| Output Voltage | 30V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Quiescent Current | 15mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 2MHz |
| Termination | SMD/SMT |
| Topology | Boost |
| Width | 3mm |
| RoHS | Compliant |
