The MIC23031-4YMT-TR is a HyperLight Load DC/DC controller from Microchip, featuring a maximum output current of 400mA and a switching frequency of up to 4MHz. It operates over a temperature range of -40°C to 125°C and is available in a 1.60 X 1.60 MM, GREEN, MLF-6 package. This device is RoHS compliant and suitable for surface mount applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC23031-4YMT-TR technical specifications.
General
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 400mA |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 400mA |
| Output Type | Fixed |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | HyperLight Load® |
| Switching Frequency-Max | 4MHz |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC23031-4YMT-TR Datasheet
Download the complete datasheet for Microchip MIC23031-4YMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

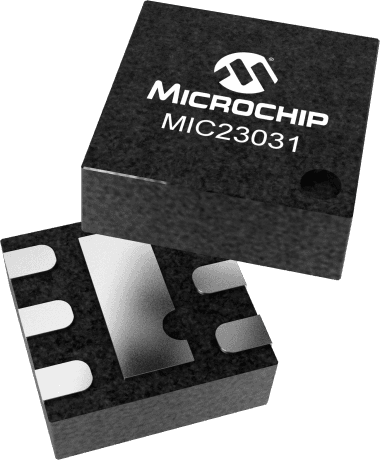

Product Images
