Dual USB power switch IC, surface mountable in an 8-pin SOIC package. Features 75mΩ on-state resistance and over-temperature fault protection. Operates with a supply voltage range of 2.7V to 7.5V, supporting up to 1A rated current per channel. Designed for high-side output configuration with a maximum input voltage of 7.5V.
PackageSOIC
Current1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2506YM technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
35mR
Fault Protection
Over Temperature
Height
1.48mm
Interface
On/Off
Lead Free
Lead Free
Length
4.93mm
Max Input Voltage
7.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Supply Voltage
7.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Outputs
2
Number of Switches
2
On-State Resistance
75mR
On-state Resistance-Max
135MR
Operating Supply Voltage
7.5V
Output Configuration
High Side
Package Quantity
95
Packaging
Rail/Tube
Radiation Hardening
No
Rated Current-Max
1A
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1A
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2506YM Datasheet
Download the complete datasheet for Microchip MIC2506YM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

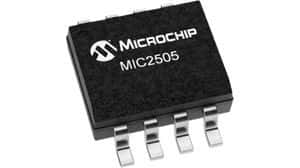

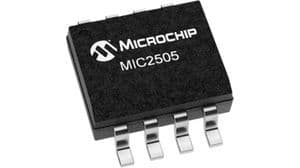

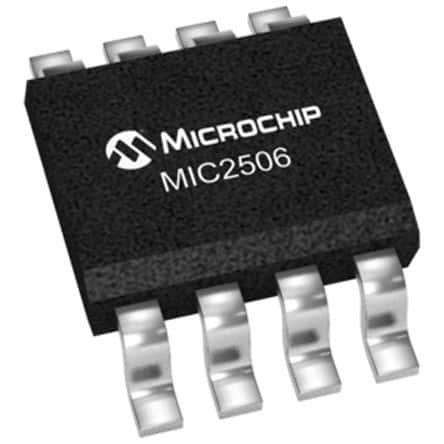

Product Images
