PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC2601YML-TR technical specifications.
General
Package/Case
DFN
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.2A
Max Output Voltage
40V
Min Output Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1.2A
Output Type
Adjustable
Package Quantity
5000
Packaging
Tape and Reel
RoHS Compliant
Yes
Switching Frequency-Max
1.2MHz
Synchronous Rectifier
No
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2601YML-TR Datasheet
Download the complete datasheet for Microchip MIC2601YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

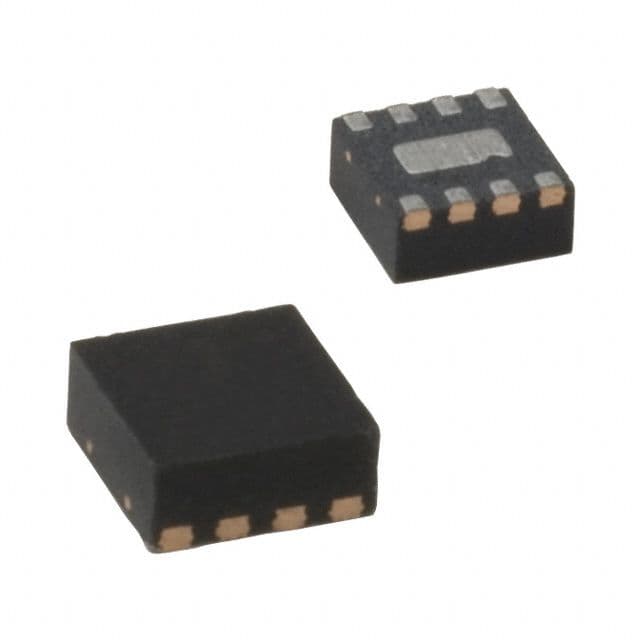

Product Images
