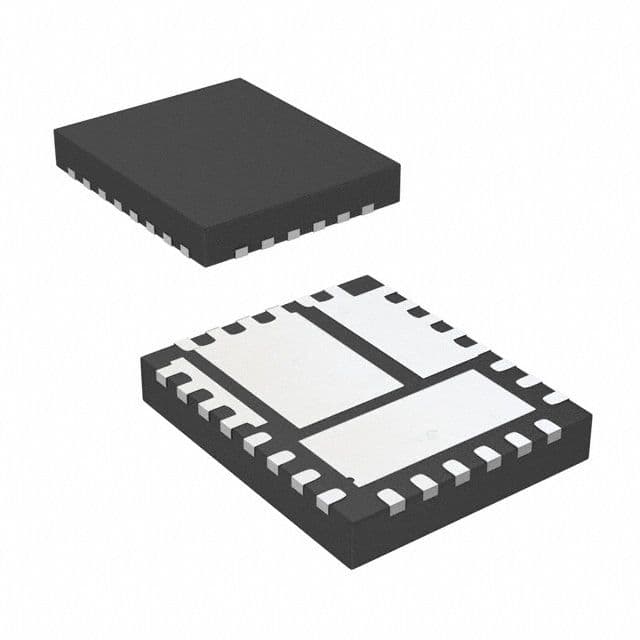

Adjustable synchronous buck DC/DC controller with 5A output current, featuring a maximum efficiency of 95%. Operates from a 4.5V to 26V input voltage range, delivering an adjustable output voltage from 800mV up to 5.5V. This surface mount integrated circuit boasts a 300kHz maximum switching frequency and a wide operating temperature range of -40°C to 125°C. Packaged in a 28-lead MLF format, it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC26400YJL-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Efficiency | 95% |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Input Voltage | 26V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | Hyper Speed Control®, SuperSwitcher II™ |
| Switching Frequency-Max | 300kHz |
| Synchronous Rectifier | Yes |
| Width | 5mm |
| RoHS | Not CompliantNo |
