Technical Specifications
Microchip MIC2841AYMT-TR technical specifications.
General
Dimming
PWM
Height
0.5mm
Lead Free
Lead Free
Length
2mm
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
4
Number of Segments
4
Operating Supply Voltage
5V
Output Current per Channel
20mA
Package Quantity
5000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
500kHz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC2841AYMT-TR Datasheet
Download the complete datasheet for Microchip MIC2841AYMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

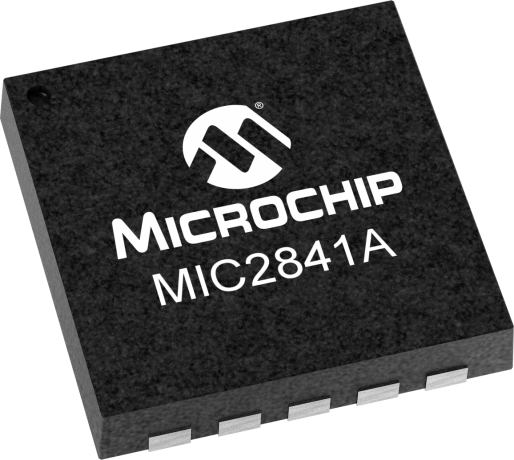

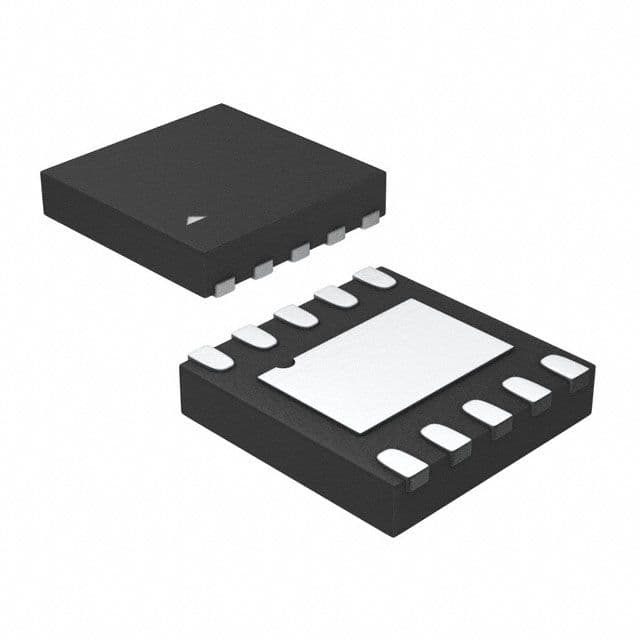

Product Images
