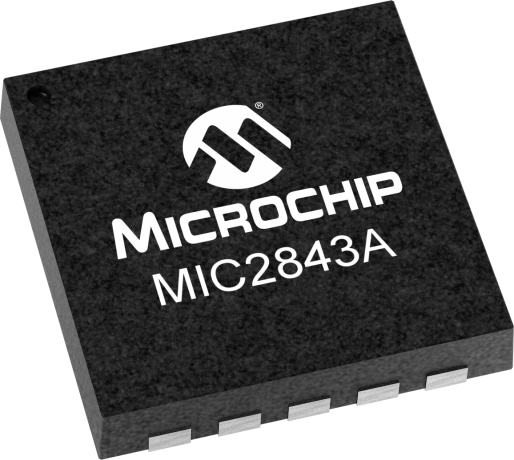

The MIC2843AYMT-TR is a 6-channel PWM dimming driver with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is designed for surface mount applications and is compliant with RoHS regulations. The device has a maximum supply voltage of 5.5V and a switching frequency of up to 500kHz. Each output channel can supply up to 20mA of current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC2843AYMT-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC2843AYMT-TR technical specifications.
| Dimming | PWM |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Outputs | 6 |
| Output Current per Channel | 20mA |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 500kHz |
| Width | 2mm |
| RoHS | Compliant |
