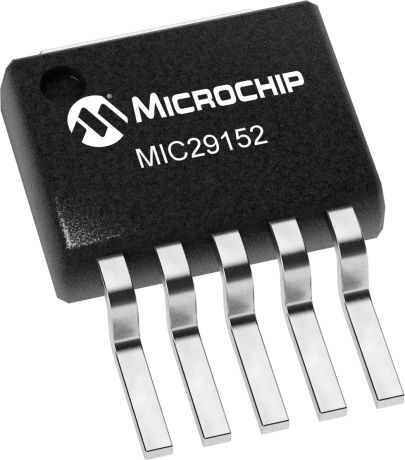

Adjustable positive linear voltage regulator (LDO) with a 1.5A maximum output current. Features a 0.35V dropout voltage and 1% output voltage accuracy. Operates with input voltages from 2.5V to 26V, providing an adjustable output up to 26V. This surface mount component is housed in a TO-263-5 package and operates across a temperature range of -40°C to 125°C.
Sign in to ask questions about the Microchip MIC29152WU-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC29152WU-TR technical specifications.
| Accuracy | 1% |
| Package/Case | TO-263-5 |
| Dropout Voltage | 350mV |
| Height | 4.59mm |
| Input Bias Current | 40nA |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 26V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 26V |
| Output Voltage Accuracy | 1% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 20mA |
| Radiation Hardening | No |
| Reference Voltage | 1.24V |
| RoHS Compliant | Yes |
| Width | 9.17mm |
| RoHS | Compliant |
