Fixed positive LDO regulator offering a 15V adjustable output voltage with a 3A maximum output current. Features a 3V to 26V input voltage range, 450mV dropout voltage, and 2% accuracy. Operates from -40°C to 125°C, with a 3A minimum current limit and 1.24V reference voltage. Packaged in a TO-263-5 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC29302AWU-TR technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-263-5 |
| Dropout Voltage | 450mV |
| Height | 9.91mm |
| Input Bias Current | 40nA |
| Lead Free | Lead Free |
| Length | 11.1mm |
| Min Current Limit | 3A |
| Max Input Voltage | 26V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Min Output Voltage | 1.24V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Packaging | Tape and Reel |
| Reference Voltage | 1.24V |
| RoHS Compliant | Yes |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC29302AWU-TR Datasheet
Download the complete datasheet for Microchip MIC29302AWU-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

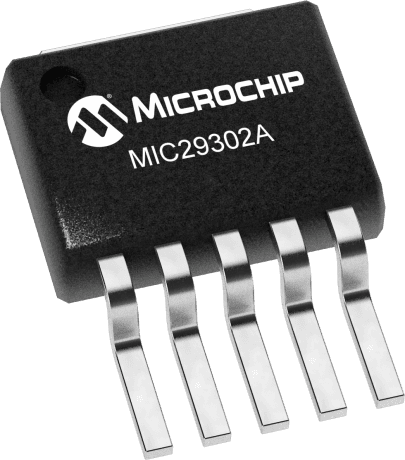

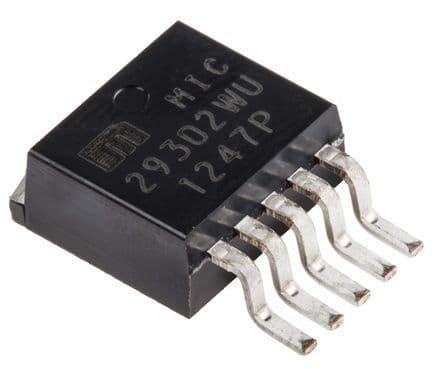

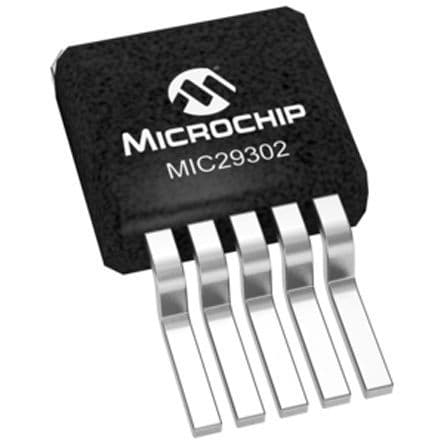

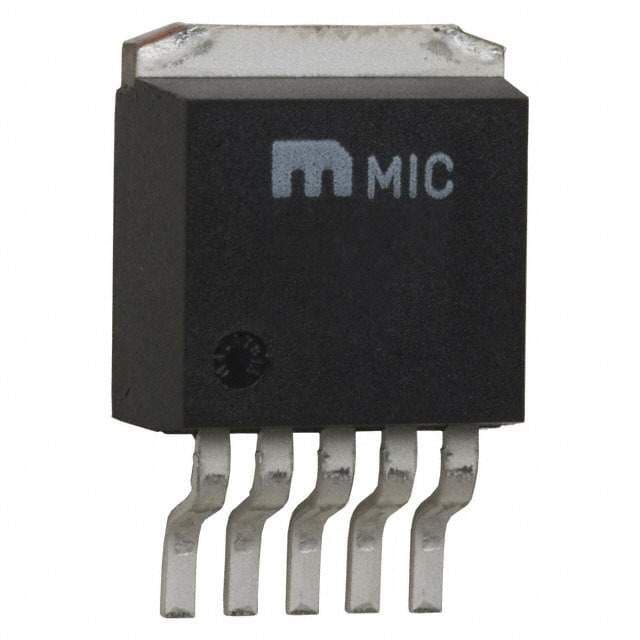

Product Images
