Adjustable positive LDO regulator, offering a 1.25V to 26V output range with 1% accuracy. Features a 370mV dropout voltage at 5A output current and a maximum input voltage of 26V. This surface mount component operates from -40°C to 125°C and is available in a TO-263-5 package. It includes a 1.24V reference voltage and is RoHS compliant.
PackageTO-263-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC29502WU-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | TO-263-5 |
| Dropout Voltage | 370mV |
| Height | 4.59mm |
| Input Bias Current | 40nA |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 26V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 26V |
| Output Voltage Accuracy | 1% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| Reference Voltage | 1.24V |
| RoHS Compliant | Yes |
| Width | 9.17mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC29502WU-TR Datasheet
Download the complete datasheet for Microchip MIC29502WU-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

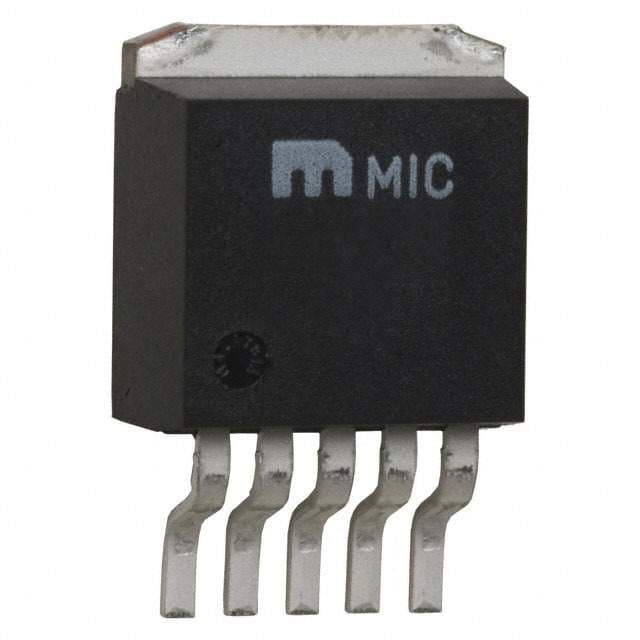

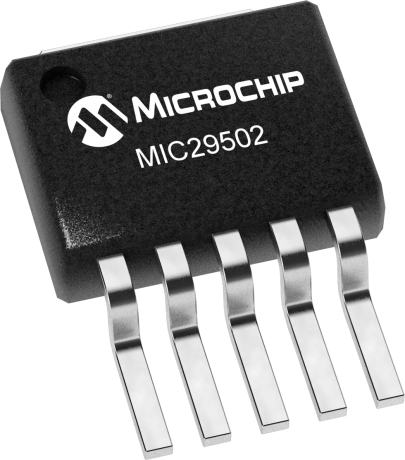

Product Images
