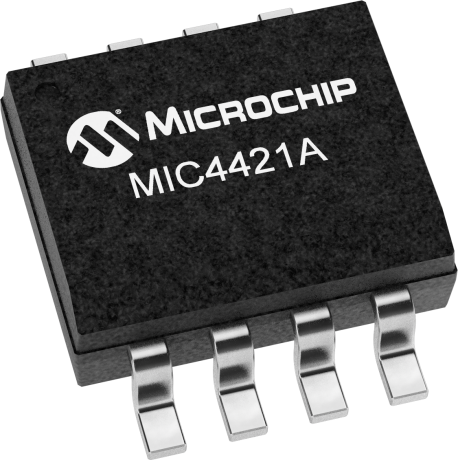

The MIC4421AYM is a single channel gate driver IC with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum output current of 9A and a maximum supply voltage of 18V. The device is packaged in a SOIC-8 package and is lead free. It is RoHS compliant and has a power dissipation of 767mW. The gate driver is suitable for use in a variety of applications where high current and high speed switching is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC4421AYM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Channel Type | Single |
| Fall Time | 75ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 9A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Output Current | 9A |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Power Dissipation | 767mW |
| RoHS Compliant | Yes |
| Supply Current | 500uA |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 68ns |
| RoHS | Compliant |
