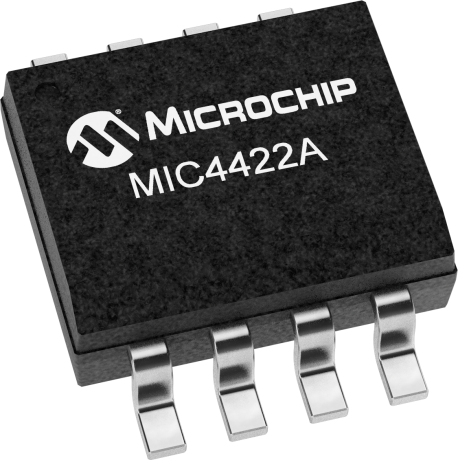

High-current, single-channel MOSFET driver designed for efficient power switching. Delivers up to 9A peak output current with fast switching speeds, featuring a 68ns turn-on delay and 60ns turn-off delay. Operates across a wide temperature range from -40°C to 150°C and supports supply voltages from 4.5V to 18V. Packaged in a lead-free, RoHS-compliant SOIC surface-mount package for automated assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC4422AYM-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC4422AYM-TR technical specifications.
| Package/Case | SOIC |
| Channel Type | Single |
| Fall Time | 75ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 9A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 767mW |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 60ns |
| Turn-On Delay Time | 68ns |
| RoHS | Compliant |
