The MIC4422BM is a single channel gate driver from Microchip, packaged in a surface mount SOIC package. It operates over a temperature range of -40°C to 150°C and is not RoHS compliant. The device can supply up to 9A of current and is rated for a maximum supply voltage of 18V. It is available in a rail or tube packaging format.
PackageSOIC
Voltage20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4422BM technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Single |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 9A |
| Max Supply Voltage | 18V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Output Current | 375mA |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Voltage | 20V |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip MIC4422BM Datasheet
Download the complete datasheet for Microchip MIC4422BM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

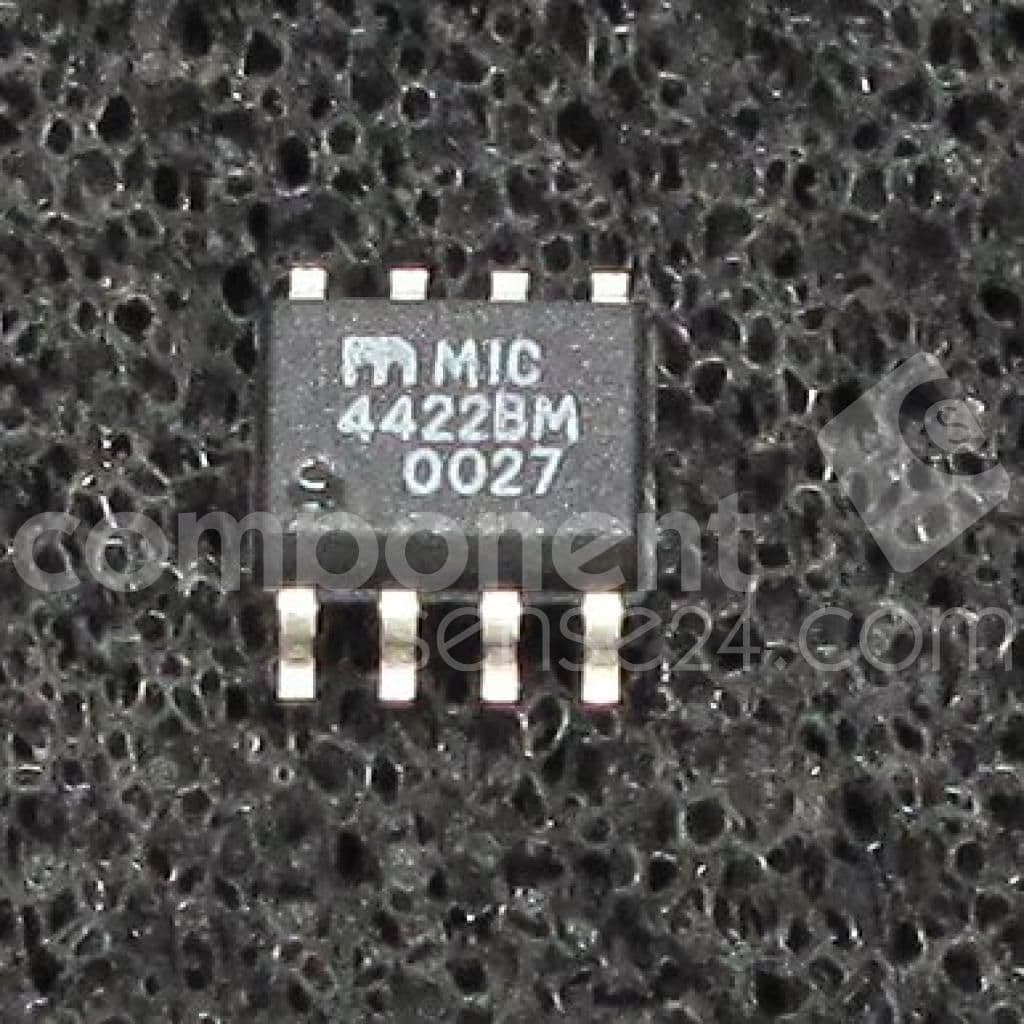

Product Images
