Dual low-side inverting gate driver IC, surface mountable in an 8-pin SOIC package. Features independent channels with a maximum output current of 1.5A and a typical output voltage of 25mV. Operates with supply voltages from 4.5V to 18V, offering a propagation delay of 50ns and fall/turn-off times of 20ns/40ns respectively. Minimum operating temperature is -40°C, maximum is 85°C, with RoHS compliance.
PackageSOIC
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4426YM technical specifications.
General
Package/Case
SOIC
Channel Type
Independent
Fall Time
20ns
Height
1.48mm
Lead Free
Lead Free
Length
4.93mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Outputs
2
Output Current
1.5A
Output Voltage
25mV
Package Quantity
95
Packaging
Rail/Tube
Propagation Delay
50ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.5mA
Turn-Off Delay Time
40ns
Turn-On Delay Time
40ns
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC4426YM Datasheet
Download the complete datasheet for Microchip MIC4426YM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

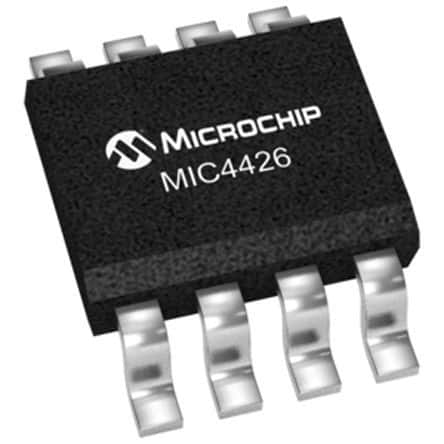

Product Images
