Dual low-side gate driver, surface mount SOIC package, featuring independent channels with a maximum output current of 1.5A. Operates with a supply voltage range of 4.5V to 18V, offering a propagation delay of 50ns and fall time of 20ns. Designed for -40°C to 85°C operating temperatures, this RoHS compliant component is supplied on tape and reel.
PackageSOIC
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4427YMTR technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Independent |
| Fall Time | 20ns |
| Height | 1.63mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 1.5A |
| Output Voltage | 25mV |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Propagation Delay | 50ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.5mA |
| Turn-Off Delay Time | 40ns |
| Turn-On Delay Time | 40ns |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC4427YMTR Datasheet
Download the complete datasheet for Microchip MIC4427YMTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

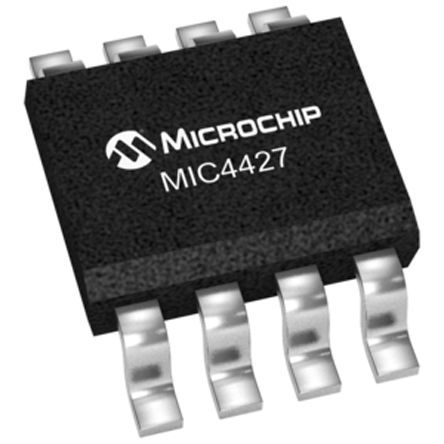

Product Images
