PackageTO-220
Current450uA
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Microchip MIC4429ZT technical specifications.
General
Package/Case
TO-220
Channel Type
Single
Fall Time
13ns
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
6A
Max Power Dissipation
2W
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Output Current
6A
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
2W
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
450uA
Compliance
RoHS
Compliant
Datasheet
Microchip MIC4429ZT Datasheet
Download the complete datasheet for Microchip MIC4429ZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

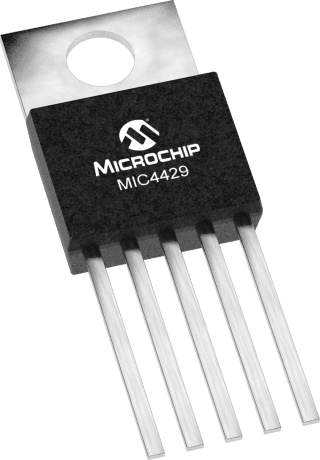

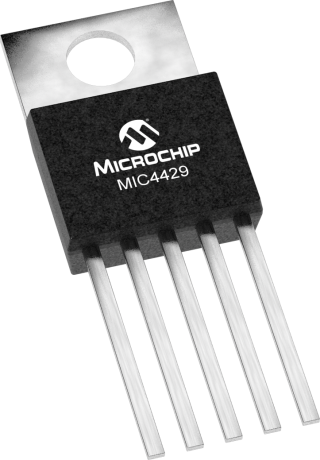

Product Images
