Single-channel, low-side, non-inverting gate driver with 12A maximum output current. Features a 60ns propagation delay and 50ns fall time. Operates from a 4.5V to 18V supply voltage and is housed in a TO-220 package for through-hole mounting. This RoHS compliant component has a power dissipation of 2W and a maximum operating temperature of 70°C.
PackageTO-220
Current450uA
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Microchip MIC4452ZT technical specifications.
General
| Package/Case | TO-220 |
| Channel Type | Single |
| Fall Time | 50ns |
| Height | 15.11mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 12A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Output Current | 12A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 2W |
| Propagation Delay | 60ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 450uA |
| Thickness | 4.5mm |
| Turn-On Delay Time | 60ns |
| Width | 4.83mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC4452ZT Datasheet
Download the complete datasheet for Microchip MIC4452ZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

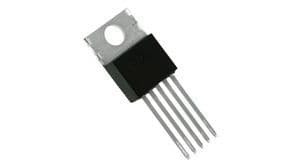

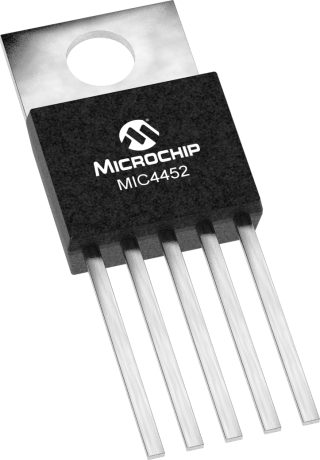

Product Images
