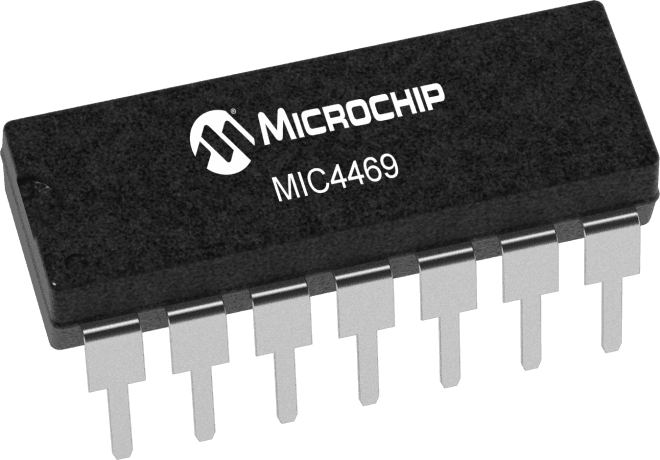

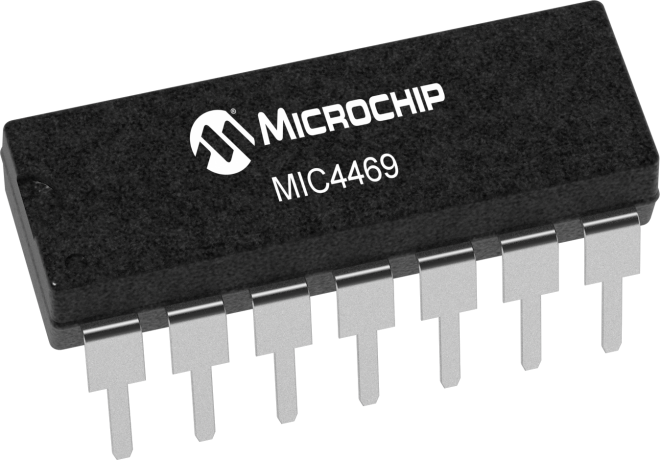

The MIC4469ZN is a 4-channel independent gate driver from Microchip, packaged in a lead-free, plastic DIP-14. It operates within a temperature range of 0°C to 70°C and is compliant with RoHS regulations. The device can supply up to 1.2A of current and withstand a maximum supply voltage of 18V. It is available in a packaging quantity of 25 units, packaged in rail/Tube format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC4469ZN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC4469ZN technical specifications.
| Package/Case | PDIP |
| Channel Type | Independent |
| Fall Time | 25ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.2A |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 4 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.5W |
| Propagation Delay | 75ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
| RoHS | Compliant |
