Adjustable DC/DC switching regulator with a maximum output current of 1A and a maximum output voltage of 20V. Features a 220kHz switching frequency, 77% efficiency, and operates from a 4V to 24V input voltage range. This positive output regulator is housed in a TO-263-5 surface mount package. It offers a minimum output voltage of 1.23V and a supply current of 5mA, with a maximum operating temperature of 85°C.
PackageTO-263-5
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4575WU technical specifications.
General
| Package/Case | TO-263-5 |
| Efficiency | 77% |
| Height | 4.59mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Input Voltage | 24V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 20V |
| Min Output Voltage | 1.23V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Switching Frequency-Max | 200kHz |
| Synchronous Rectifier | No |
| Topology | Buck-Boost |
| Width | 9.17mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC4575WU Datasheet
Download the complete datasheet for Microchip MIC4575WU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

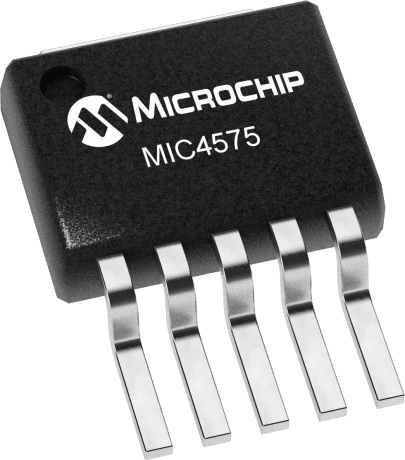

Product Images
