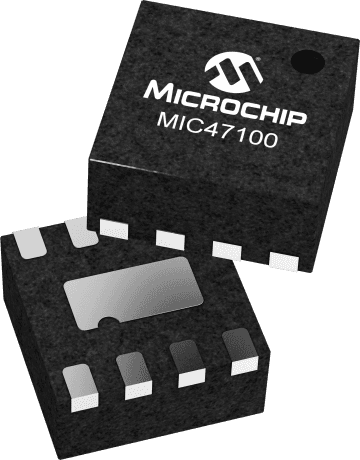

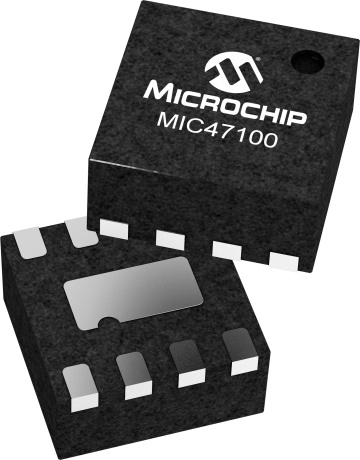

1.2V fixed positive linear voltage regulator (LDO) with 1A output current. Features 80mV dropout voltage at 1A and 1.5% accuracy. Operates from 1V to 3.6V input voltage with a maximum supply voltage of 5.5V. Surface mount DFN package with a nominal supply current of 6µA. Operating temperature range of -40°C to 125°C. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC47100-1.2YML-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1.5% |
| Package/Case | DFN |
| Dropout Voltage | 80mV |
| Height | 900um |
| Lead Free | Lead Free |
| Min Current Limit | 1.1A |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Min Output Voltage | 1.2V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Nominal Output Voltage | 1.2V |
| Nominal Supply Current | 6uA |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.2V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip MIC47100-1.2YML-TR to view detailed technical specifications.
