Adjustable 3A DC/DC buck controller, featuring a 2MHz switching frequency for high efficiency up to 94%. Operates with input voltages from 2.7V to 5.5V, delivering an adjustable output voltage from 1V to 5.5V. Designed for surface mount applications with a single positive output channel. This lead-free, RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
Frequency2MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC4723YML-TR technical specifications.
General
| Efficiency | 94% |
| Frequency | 2MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 1V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 2MHz |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC4723YML-TR Datasheet
Download the complete datasheet for Microchip MIC4723YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

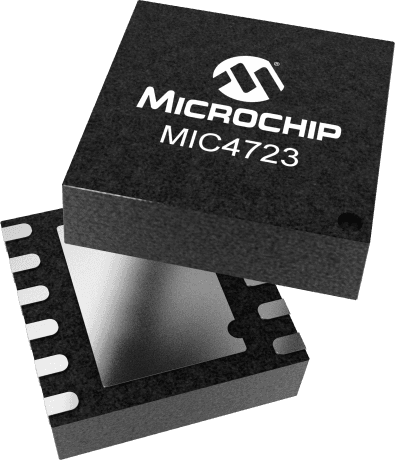

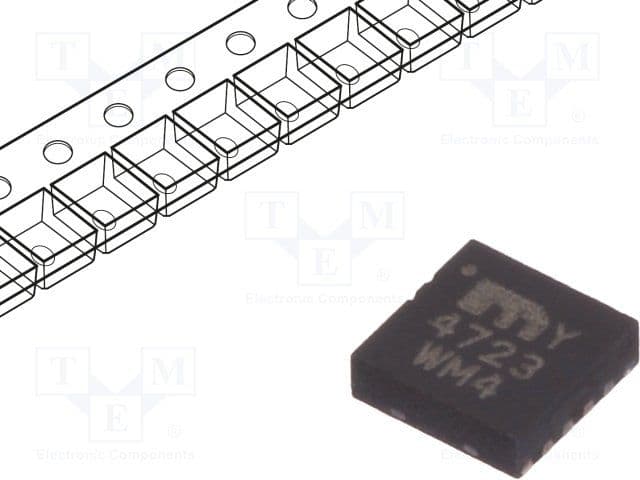

Product Images
