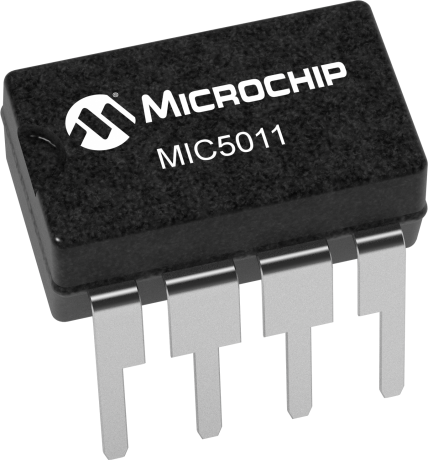

The MIC5011YN is a single channel gate driver from Microchip, packaged in a PDIP with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum output current of 20mA and a maximum power dissipation of 1.25W. The device is RoHS compliant and has a supply current of 8mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5011YN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5011YN technical specifications.
| Package/Case | PDIP |
| Channel Type | Single |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Power Dissipation | 1.25W |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.25W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 8mA |
| Turn-Off Delay Time | 4us |
| Turn-On Delay Time | 25us |
| RoHS | Compliant |
