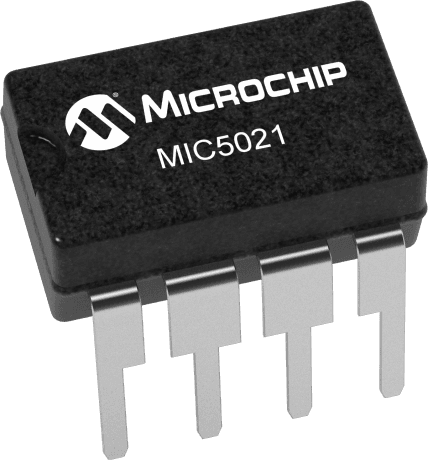

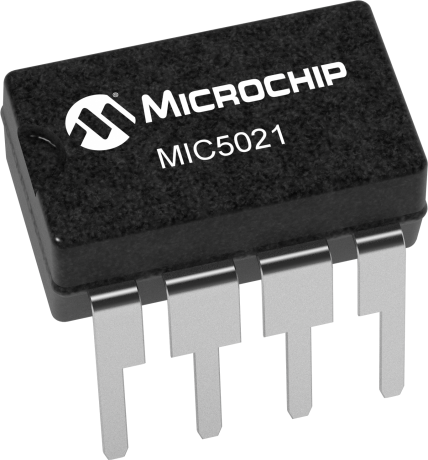

Microchip MIC5021YN technical specifications.
| Package/Case | PDIP |
| Channel Type | Single |
| Fall Time | 500ns |
| Frequency | 150kHz |
| Height | 3.43mm |
| Lead Free | Lead Free |
| Length | 9.65mm |
| Max Frequency | 150kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 12V |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Turn-Off Delay Time | 1.5us |
| Turn-On Delay Time | 1us |
| Width | 6.48mm |
| RoHS | Compliant |
