Positive fixed 3.3V output voltage regulator with 80mA maximum output current. Features a 0.6V dropout voltage and 3% accuracy. Operates from a 2.5V to 16V input voltage range. Housed in a compact 1mm height, 2.2mm length, 1.35mm width PDSO5 surface mount package. RoHS compliant and lead-free.
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5213-3.3YC5-TR technical specifications.
General
Accuracy
3%
Package/Case
SC
Height
1mm
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
16V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Min Output Voltage
3.3V
Max Supply Current
3mA
Max Supply Voltage
16V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
80mA
Output Type
Fixed
Output Voltage
3.3V
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
750uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Teeny™
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5213-3.3YC5-TR Datasheet
Download the complete datasheet for Microchip MIC5213-3.3YC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

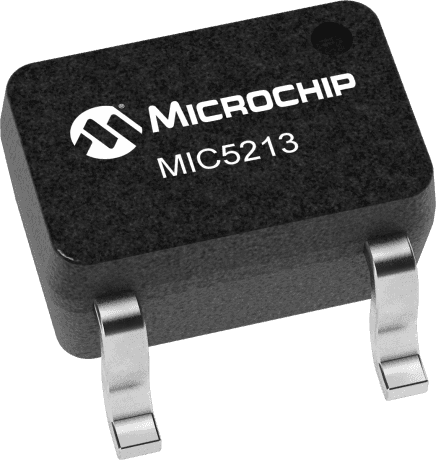

Product Images
