Technical Specifications
Microchip MIC5213-3.6YC5-TR technical specifications.
General
| Package/Case | SC |
| Dropout Voltage | 280mV |
| Lead Free | Lead Free |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 80mA |
| Min Output Voltage | 3.6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 80mA |
| Output Type | Fixed |
| Output Voltage | 3.6V |
| Output Voltage Accuracy | 3% |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Teeny™ |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5213-3.6YC5-TR Datasheet
Download the complete datasheet for Microchip MIC5213-3.6YC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

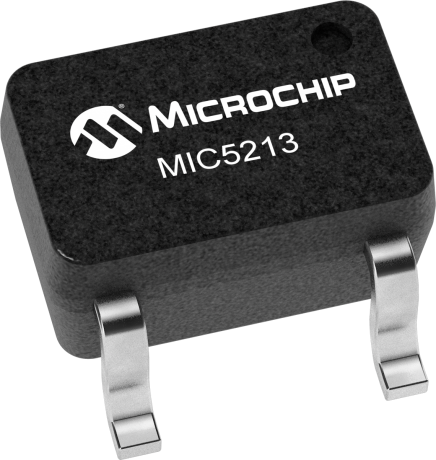

Product Images
