5V positive fixed output linear voltage regulator with 280mV dropout voltage and 80mA output current. Features a 2.5V to 16V input voltage range and 4% accuracy. Surface mountable in a 5-pin SC package, this RoHS compliant component operates from -40°C to 125°C.
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5213-5.0YC5-TR technical specifications.
General
| Accuracy | 4% |
| Package/Case | SC |
| Dropout Voltage | 280mV |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 80mA |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 80mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Teeny™ |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5213-5.0YC5-TR Datasheet
Download the complete datasheet for Microchip MIC5213-5.0YC5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

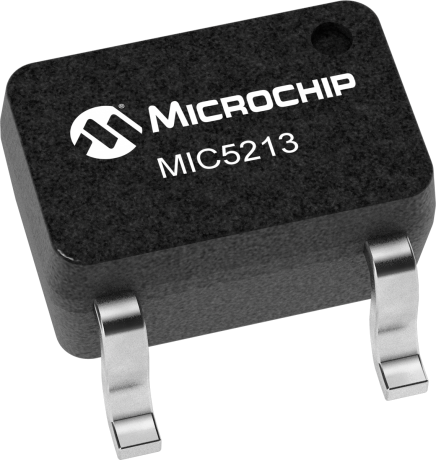

Product Images
