Positive fixed output voltage regulator IC, providing a stable 2.5V output with a maximum output current of 150mA. Features a low dropout voltage of 135mV at 150mA and a high power supply rejection ratio (PSRR) of 60dB. Operates with an input voltage range from 2.7V to 6V and maintains 1% output voltage accuracy. Packaged in a compact SOT-23-5 (PDSO5) surface-mount case, this lead-free component is supplied on tape and reel.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5255-2.5YM5-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-23-5 |
| Dropout Voltage | 135mV |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Min Current Limit | 160mA |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5255-2.5YM5-TR Datasheet
Download the complete datasheet for Microchip MIC5255-2.5YM5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

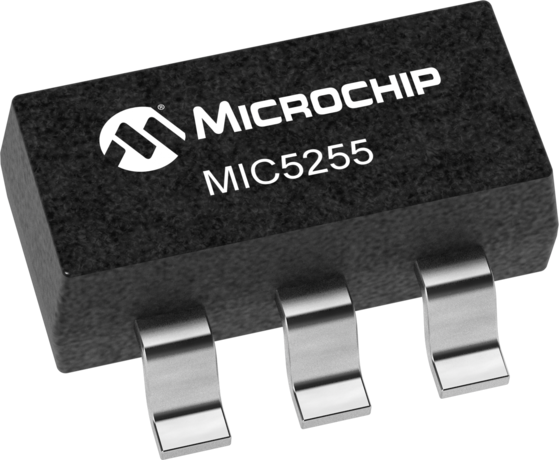

Product Images
