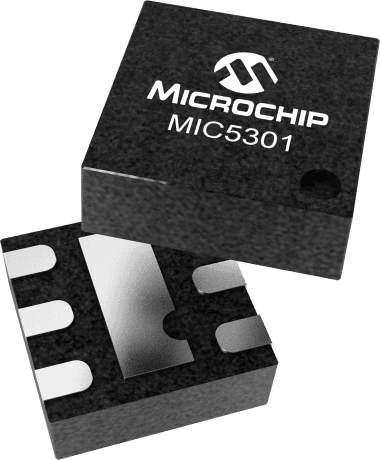

The MIC5301-2.5YMT-TR is a single positive linear voltage regulator with a fixed output voltage of 2.5V and a maximum output current of 150mA. It operates from a minimum input voltage of 2.3V and a maximum input voltage of 5.5V, with a dropout voltage of 40mV. The device is RoHS compliant and has a quiescent current of 120uA. It is available in a surface mount package and is suitable for operation over a temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5301-2.5YMT-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5301-2.5YMT-TR technical specifications.
| Dropout Voltage | 40mV |
| Lead Free | Lead Free |
| Min Current Limit | 275mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 120uA |
| RoHS Compliant | Yes |
| RoHS | Compliant |
