PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC5305-4.75YML-TR technical specifications.
General
Package/Case
VQFN
Dropout Voltage
60mV
Lead Free
Lead Free
Min Current Limit
300mA
Max Input Voltage
5.5V
Min Input Voltage
2.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
4.75V
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
4.75V
Package Quantity
5000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
150uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5305-4.75YML-TR Datasheet
Download the complete datasheet for Microchip MIC5305-4.75YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

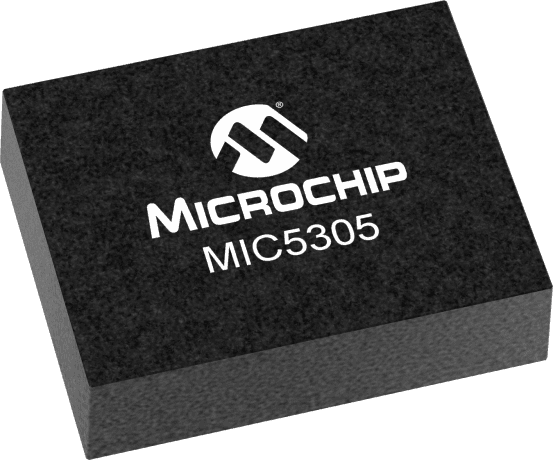

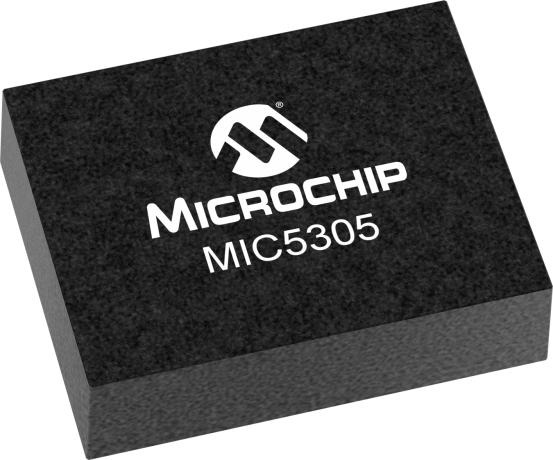

Product Images
