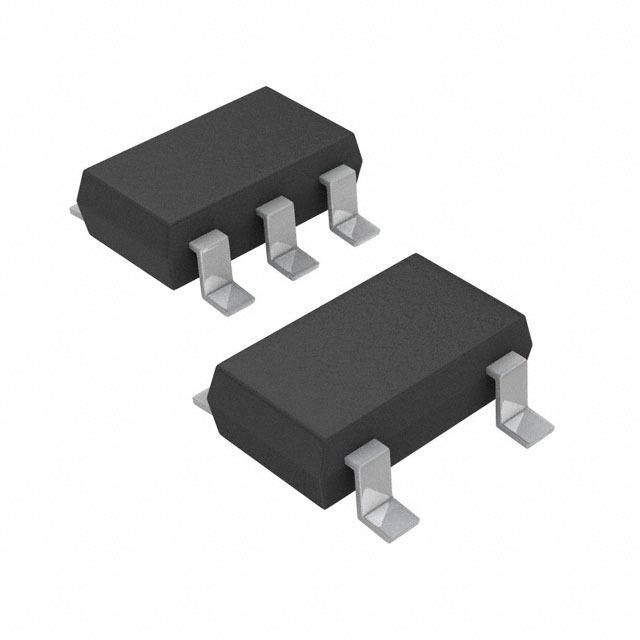

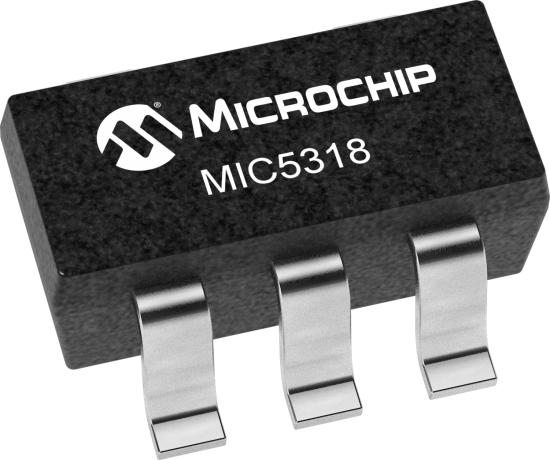

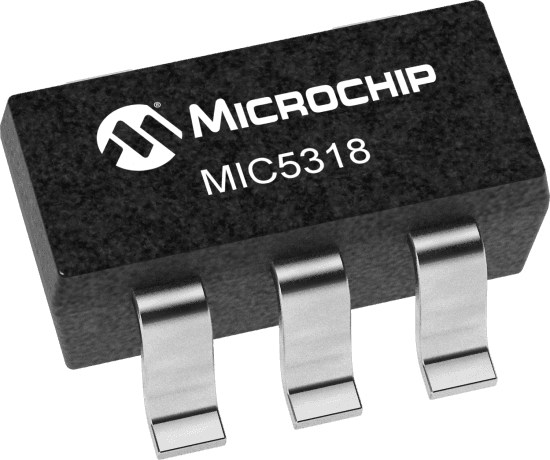

The MIC5318-1.8YD5-TR is a single linear voltage regulator with an output voltage of 1.8V and an output current of 300mA. It features a dropout voltage of 110mV and is available in a SOT-23-5 package. The device is designed for surface mount applications and is compliant with RoHS regulations. It operates over a temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MIC5318-1.8YD5-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MIC5318-1.8YD5-TR technical specifications.
| Package/Case | SOT-23-5 |
| Dropout Voltage | 110mV |
| Lead Free | Lead Free |
| Min Current Limit | 340mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Regulators | 1 |
| Output Current | 300mA |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip MIC5318-1.8YD5-TR to view detailed technical specifications.
