Adjustable positive LDO regulator, offering a 1.25V to 5.5V output range with 2% accuracy. Features a low 110mV dropout voltage and a maximum output current of 300mA. Operates from a 2.3V to 6V input voltage, with a quiescent current of 150µA. Packaged in a compact 1.6mm x 1.6mm x 0.55mm surface-mount PDSO6, this RoHS compliant component is suitable for demanding applications.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MIC5318YMT-TR technical specifications.
General
| Accuracy | 2% |
| Dropout Voltage | 110mV |
| Height | 0.55mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Min Current Limit | 340mA |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 300mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 2% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5318YMT-TR Datasheet
Download the complete datasheet for Microchip MIC5318YMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

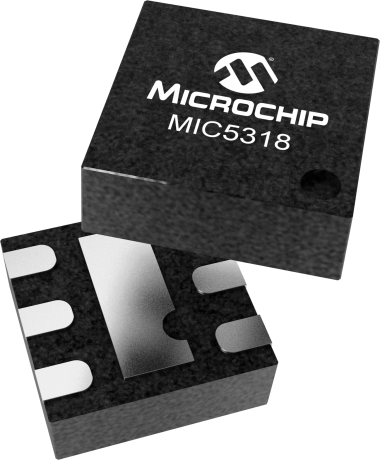

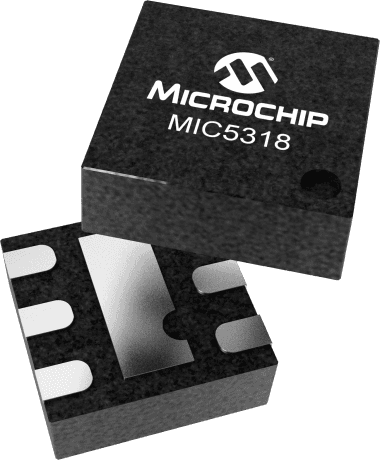

Product Images
