PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC5319-2.5YD5-TR technical specifications.
General
Package/Case
SOT-23-5
Dropout Voltage
200mV
Lead Free
Lead Free
Min Current Limit
600mA
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
2.5V
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
150uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MIC5319-2.5YD5-TR Datasheet
Download the complete datasheet for Microchip MIC5319-2.5YD5-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

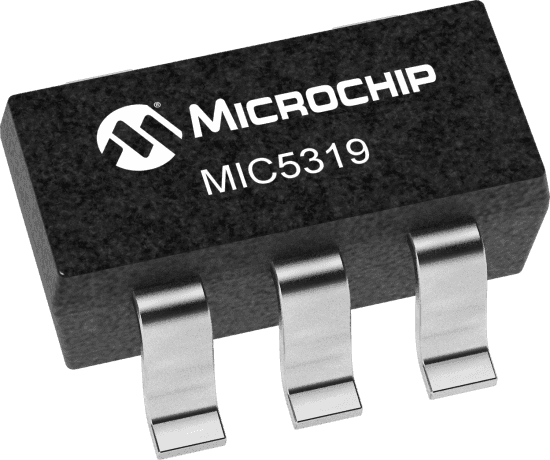

Product Images
