5V positive fixed output linear voltage regulator with 500mA maximum output current. Features a 200mV dropout voltage at 500mA and 1% output voltage accuracy. Operating input voltage range is 2.5V to 5.5V, with a quiescent current of 150µA. This surface mount component is housed in a VQFN package, measuring 2mm x 2mm x 0.85mm, and operates from -40°C to 125°C. It offers a 60dB PSRR and is RoHS compliant.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MIC5319-5.0YML-TR technical specifications.
General
| Accuracy | 1% |
| Package/Case | VQFN |
| Dropout Voltage | 200mV |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Min Current Limit | 600mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Min Output Voltage | 5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 150uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MIC5319-5.0YML-TR Datasheet
Download the complete datasheet for Microchip MIC5319-5.0YML-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

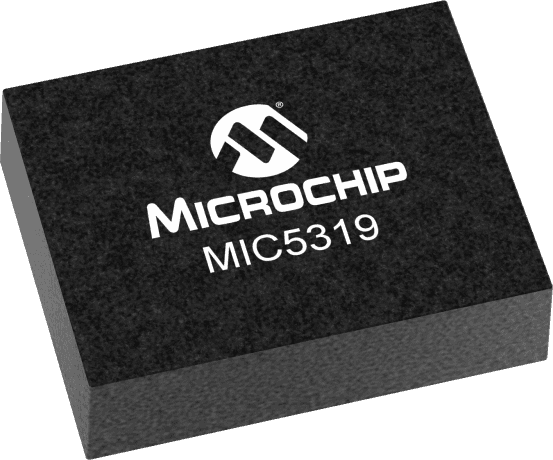

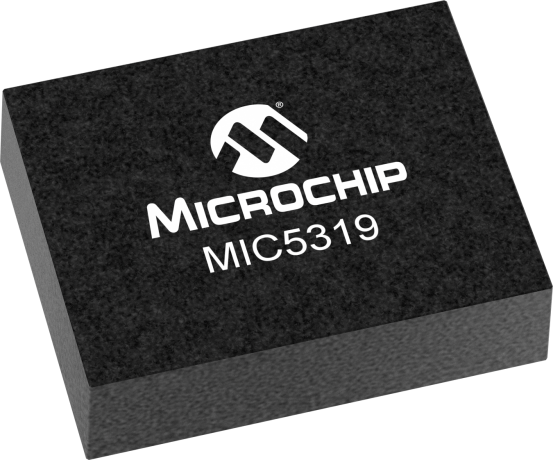

Product Images
